Product Code: AG65351
Shipping: $1.99
Availability: In Stock
Price: $8.99
Qty:
   - OR -

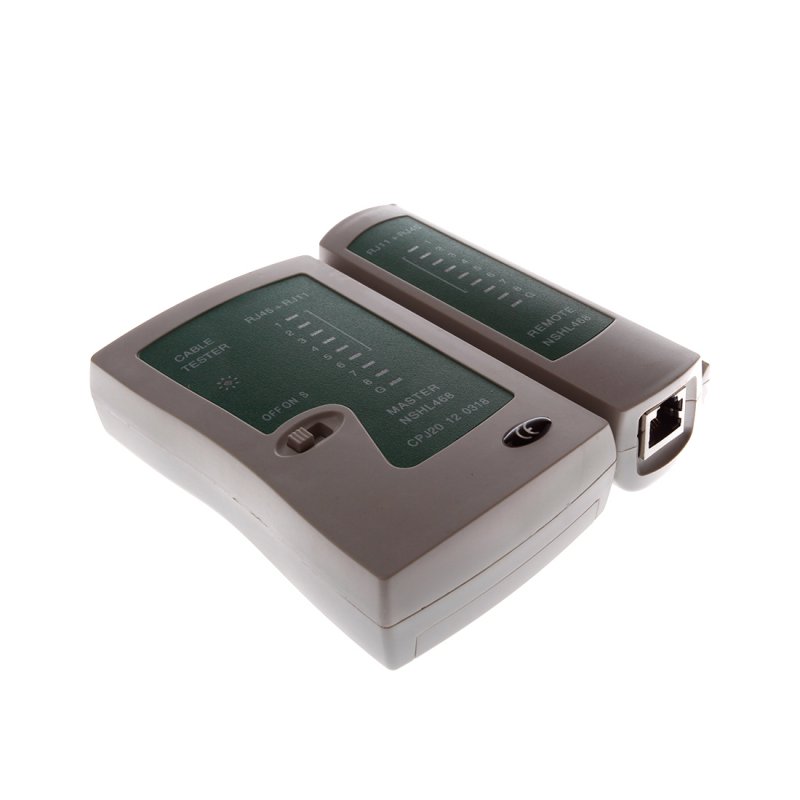

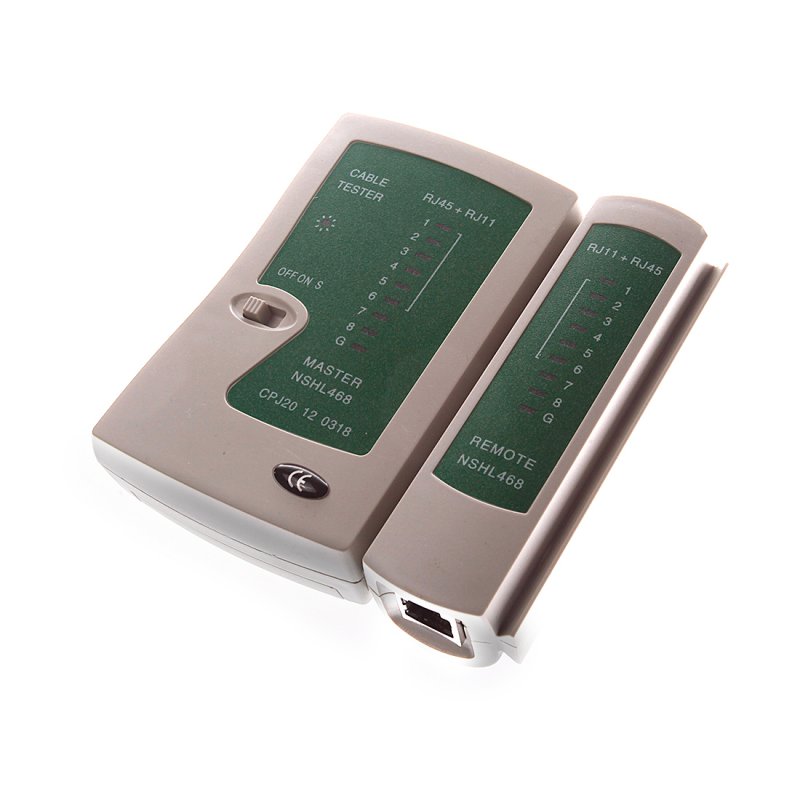

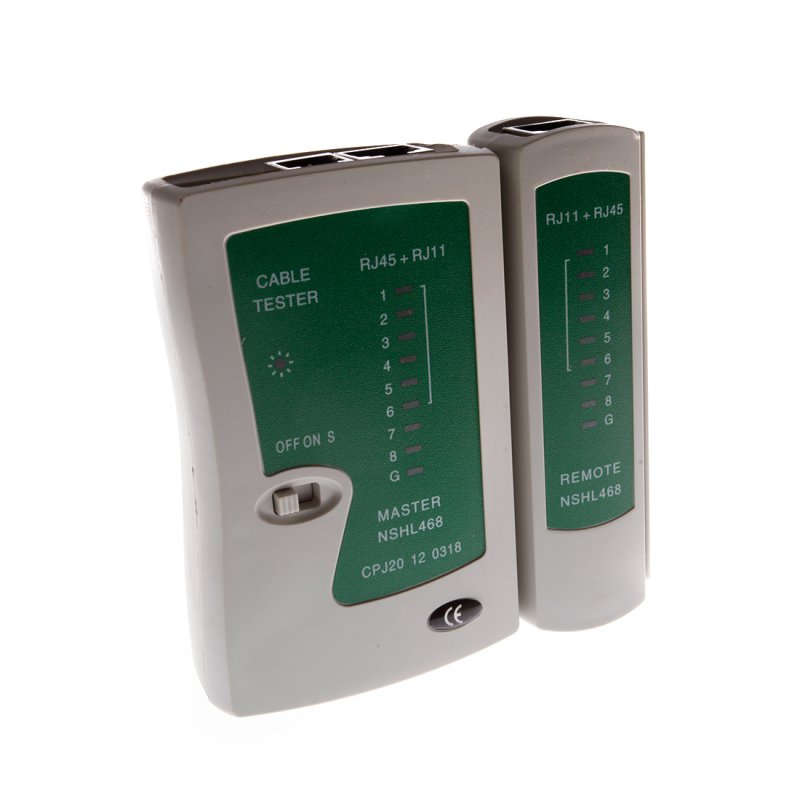

Name: Fei Yue RJ45 RJ11 RJ12 CAT5 CAT6 Network LAN Cable Tester Test Tool Green
Product Type: Network Cable Test
Test Cable: RJ11, RJ45
Power: 9V Laminated Cell (not included)
Power Consumpation: 25MA
Product Size: 10.5*10.5*2.6cm
Product Weight: 200g
Function: Test RJ45, RJ11 cable
Colour: Green

Function
1.Test of double-twisted cables: Switch on the paper. (S is slow automatic grade, Mis manual). Put cables into main tester and remote tester. This lights of the main tester will turn on sequently form 1 to G.
2.Main Tester: 1-2-3-4-5-5-7-8-G
3.Remote Tester: 1-2-3-4-5-5-7-8-G RJ45 1-2-3-4-5-6 RJ11
Abnormal Connections
1. If one cable, for example cable No.3 is open circuited, the two No.3 lights of the main tester and remote tester will not turn on.
2.If several cables are not connected, several lights will not turn on respectively. If less than two cables are connected, none of the lights is on.
3. If two ends of a cable is disordered, for example NO.2 and NO.4, then displays on: Main Tester: 1-2-3-4-5-5-7-8-G Remote Tester: 1-2-3-4-5-5-7-8-G
4. If two cables are short circuited, neither of the cooresponding lights is on of the remote tester while main tester remians unchanged. If three cables, including three, are short circuited,none of the corresponding lights is on.
5. If test patch pannel or wall plate outles, two cables which can match each other(RJ45) will be connected to the tester.
6. If test cable of the same axes, BNC turns on when the cable works.

Package List
Network LAN Cable Tester*1
