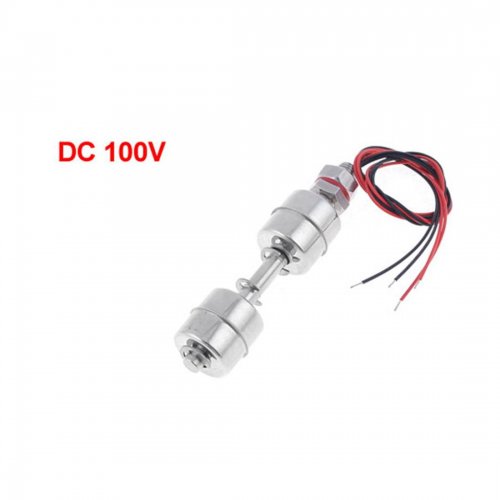

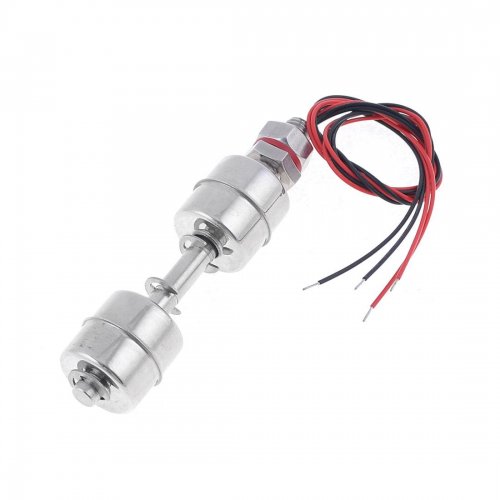

Stainless Steel Double Ball Water Level Sensor Float Switch

Stainless Steel Double Ball Water Level Sensor Float Switch
Stainless Steel Double Ball Water Level Sensor Float Switch Stainless Steel Double Ball Water Level Sensor Float Switch
Product Code: AG53455
Shipping: $1.99
Availability: In Stock
Price: $14.34
Qty:
   - OR -
Specifications:
Product Name Water Level Sensor
Contacts NO+NC
Max Contact Rating
10W
Max Switch Voltage 100V DC
Max Switch Current 0.5A
Max Breakdown Voltage 220V DC
Max Carry Current 1.0A
Max Contact Resistance 100mΩ
Temperature Rating -10 ~ +85 Degree
Float Ball Material Stainless Steel
Float Body Material Stainless Steel
Each Float Ball Size 25 x 25mm/ 1" x 1"(D*H)
Screw Thread Diameter 9.5mm/0.27"
Retaining Clip Diameter 15mm/ 0.6"
Body Total Length 115mm/ 5.1"
Cable Length 34cm/ 1.1 Ft
Color Silver Tone, Black, Red
Weight 60g
Package Content 1 x Water Level Sensor
Description:
A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device. Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, pumps, ponds, basement alarms, boats, air condition drain pans, pressure washers, carpet cleaning mach, reef aquarium, fluid control, ice machines, coffee pots, marine, automotive, automobiles, tropical fish tanks, evaporator coils, condensation line, in relays, or what ever your project may be. It can be easily converted from normally open to normally close by invertin the float. Note: because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.
