bside bth05 usb three chanels temp humidity data logger with display temp probe outside

bside bth05 usb three chanels temp humidity data logger with display temp probe outside
bside bth05 usb three chanels temp humidity data logger with display temp probe outside bside bth05 usb three chanels temp humidity data logger with display temp probe outside bside bth05 usb three chanels temp humidity data logger with display temp probe outside bside bth05 usb three chanels temp humidity data logger with display temp probe outside bside bth05 usb three chanels temp humidity data logger with display temp probe outside bside bth05 usb three chanels temp humidity data logger with display temp probe outside
Product Code: AG56490
Shipping: $1.99
Availability: In Stock
Price: $87.69
Qty:
   - OR -

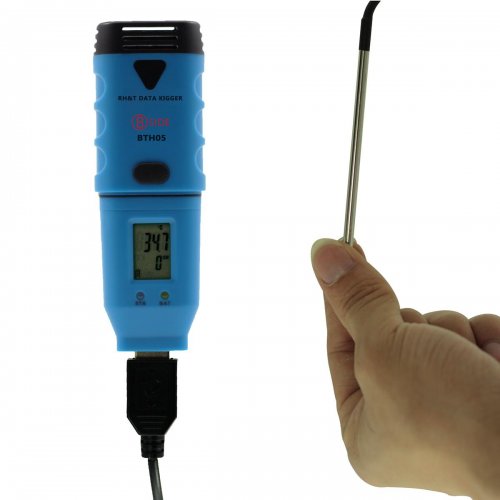

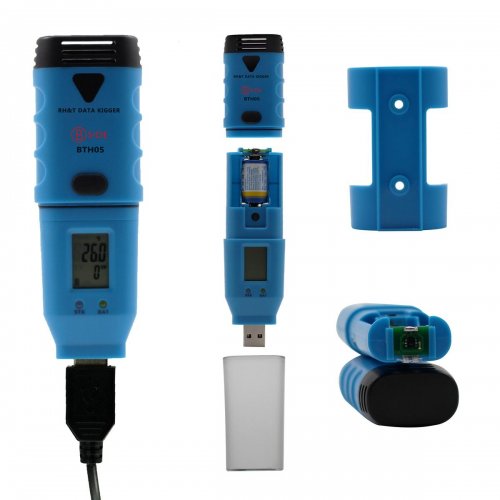

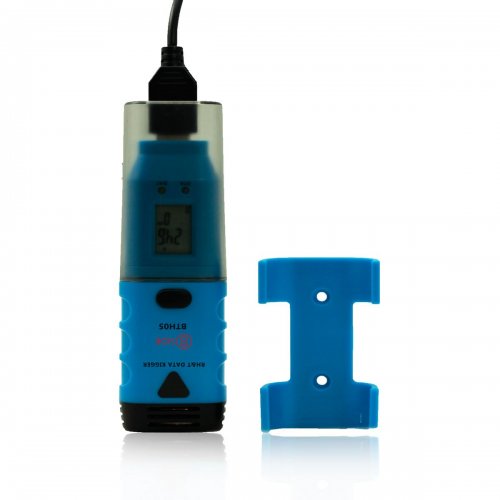

bth05 introduction
this data logger measures and stores temperature(one channel for internal, and another channel for external probe) and humidity readings. some professional applications can be provided by the pc software dgraph. logger status, alarm indication and low battery indication are via flashing red/green led and yellow led. the button on housing can be used to start logging, or confirm and clear led alarm when led alarm is hold status.
user can plug data logger straight into pc's usb port without any cables. before getting started, user need to install usb driver and dgraph software, provided on the cd which is included in product packing box. all the software can run under windows xp, vista, 7 or 8(32 bit and 64 bit versions). user can easily use dgraph software to setup sample rate(from 10 seconds to 12 hours), high/low alarm limit and start/stop method , and download data to pc, etc. and then user can view, analyse and print the data, or export other file formats(txt, xsl, csv, bmp, jpg).
especially, for some professional applications, user can set access password, name each channel, enable/disable specified channel, input calibration data for each channel, disable led indication for saving power, and select sample mode(instant, average, maximum and minimum), etc.

applications
this data logger is used mainly to monitor and verify humidity&temperature-sensitive goods, equipment or areas. example:
cold chain refrigeration transportations hvac food&pharmaceutical warehouse

features

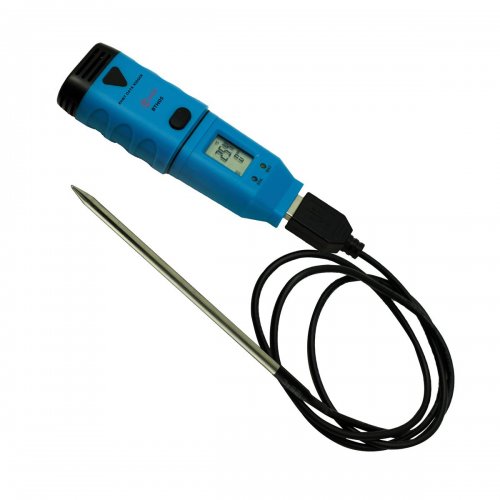

with an external temperature probe, the length of 2m(or customized)
portable, precise, compact and low cost
usb interface directly communicate with pc for setup and data download
unique and uniform pc control software: dgraph
each unit has single serial number
user can set access password fo each data logger
alarm and status indication via led
start logging method: immediately, button, start at
replaceable lithium battery and data is not lost if exhausted
two point calibration for each channel
start logging method: immediately, button, start at
replaceable lithium battery and data is not lost if exhausted
alarm and status indication via led
alarm limit settings for all channels
user can customize compound graph
user can customize new unit easily
user can name each channel and enable/disable it

specifications
measurement range: -35 to 80°c(-31 to 176f)(internal); 0 to 100%rh; -40°c~125°c(external)
accuracy(typ.): ±0.3°c(±0. 5f); ±3%; ±0.5°c(±0. 9f)
resolution(typ.): 0.1°c(0.2f); 0.1%; 0.1°c(0.2f);
memory capacity: 64kbytes(total 32,000 readings)
sample rate: user selectable from once every 10 seconds to once every 12 hours
pc software: dgraph software and usb driver required (included in cd)
power supply: user replaceable 1/2aa 3.6v lithium battery, 1200mah
battery life: approx. 3 years @ 1 minute sample rate

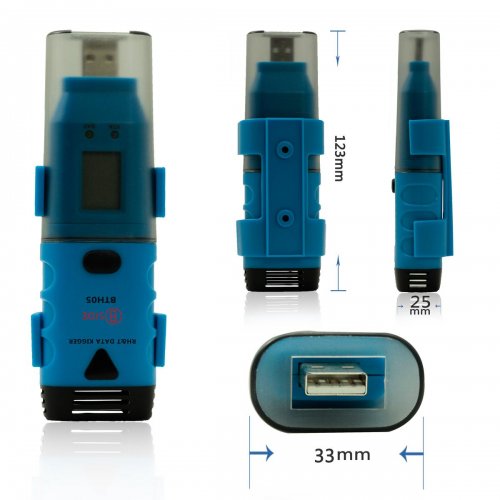

dimensions: 120mmX37mmX23mm(4.8"X1.5"X0.9")
case material and weight: abs; approx. 80 grams(2.82 oz)


moq (for each item)?
 100pcs
price for moq?
gift box
 size: 165 x105 x50mm
gross weight: 167g
ctn
 100pcs/ctn
size:55*35*55cm
net weight:16.7kg
gross weight:17kg
warranty time?
 12 months
delivery/production time?
our company contact details
certifications (e.g. ce)?
