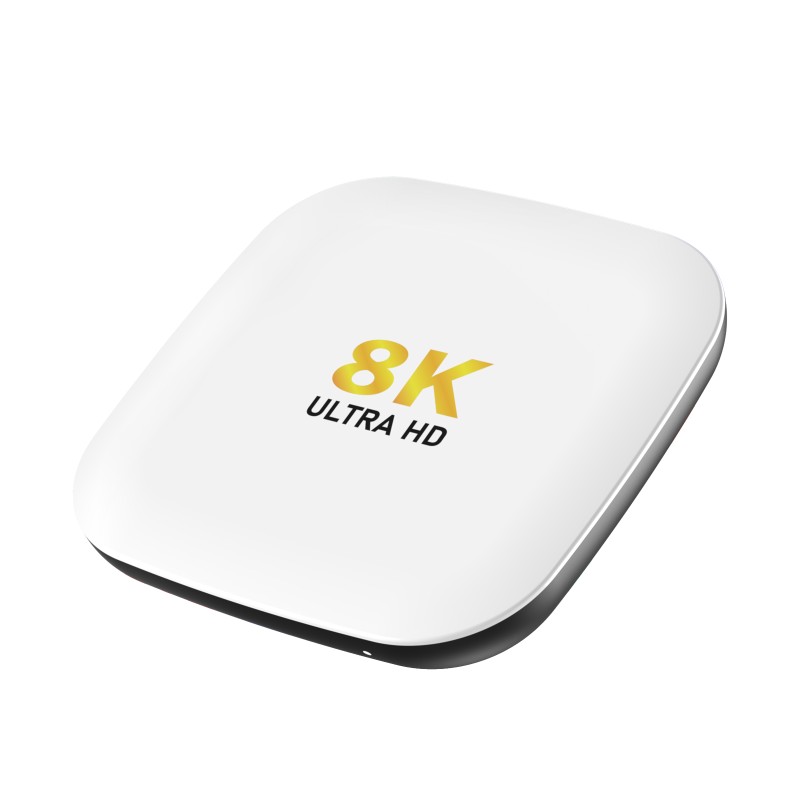

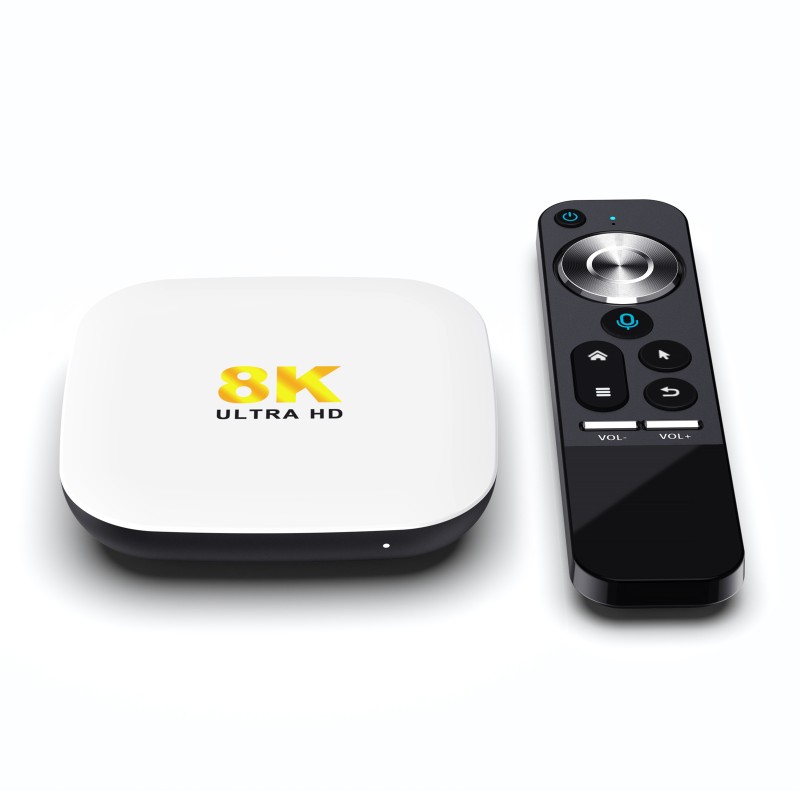

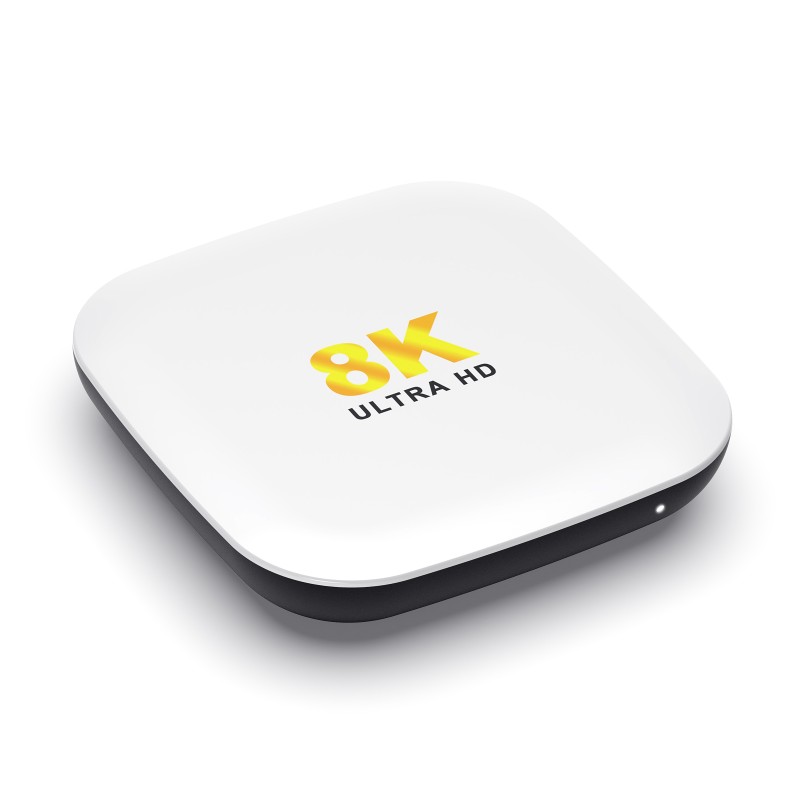

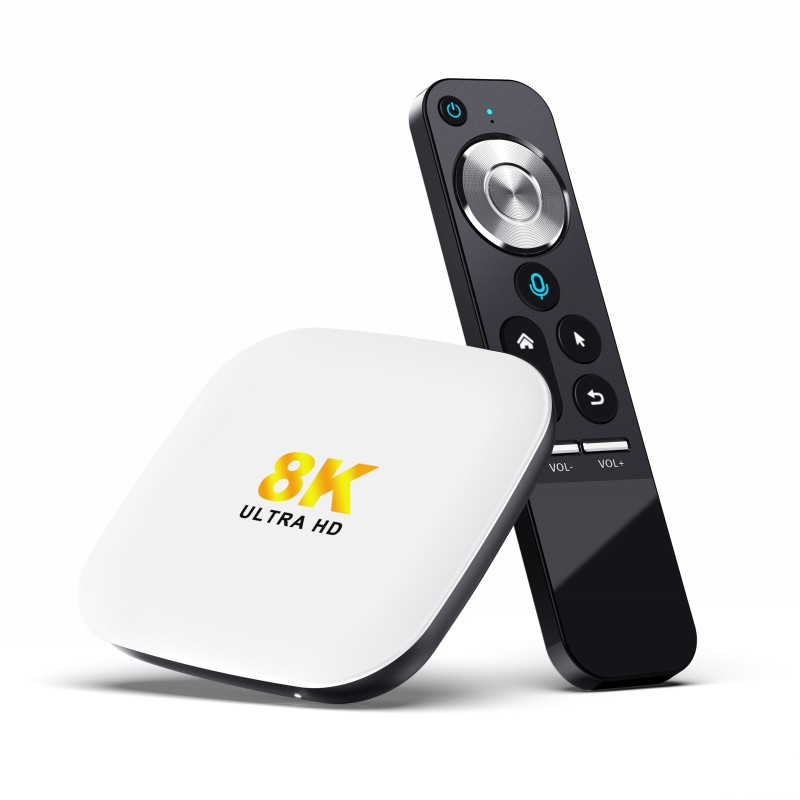

H96 Max M2 Android 13.0 TV Box RK3528 WiFi6 Bluetooth 5.0 100M LAN Support H.265 8K UHD 4K 60fps Set Top TV Box

Product Code: AG97076
Shipping: $1.99
Availability: In Stock

Price: $33.03

Available Options

RAM & ROM Memory:

Qty:

- OR -

Add to Wish List
Add to Compare

Description

H96 Max M2 Android TV Box is equipped with Android 13.0, RK3528 Quad Core ARM Cortex A53 CPU, easy to use, support voice search, and a world of content that whole family can enjoy.
Using the lastest Dual WIFI 2.4 G and 5 G (IEEE802. a/b/g/n/ac /ax Wifi6 stronger signal) Bluetooth 5.0 Build in, Support 10/100M Ethernet LAN. supports 4GB DDR3 RAM 64GB eMMC ROM gives you more space to enjoy your entertainment.
Supports H.265, 4K 60fps, HDR10+, HD 2.0, USB2.0; 10/100M Ethernet, WiFi 6, Bluetooth 5.0

CPU: RK3528 Quad Core ARM Cortex-A53
GPU: Mali-450
Memory: 2GB/4GB
Flash: 16GB/32GB/ 64GB
WiFi: WLAN 802.11a/b/g/n/ax
Bluetooth: BT 5.0

I/O:
1*HD: 4K*2K UHD Output
1*USB: 1*USB 3.0
1*DC : 5V/2A
1*AV: 480i/576i for CVBS
LAN: Ethernet:1000 standard RJ-45

Software:
OS: Android 13.0

Video Decoder:
Real-time video decoder of
MPEG-1, MPEG-2, MPEG-4
H.263, H.264/AVC, H.265/HEVC, MVC
VC-1
AVS, AVS+,AVS2
MMU Embedded
Supports frame timeout interrupt, frame finish interrupt and bit stream error interrupt
Error detection and concealment support for all video formats
Output data format YUV420 semi-planar, YUV400(monochrome), YUV422 is
supported by H.264
H.264/AVC BP/MP/HP profile @ level 5.1; H.264/AVC MVC; up to 4Kx2K@60fps and 8K*4K@23fps
H.265/HEVC Main/Main10 profile @ level 5.1 High-tier; up to 4Kx2K@60fps and 8K*4K@23fps
AVS2 4KX2K @60fps
MPEG-1, Main profile, up to 1080P@60fps
MPEG-2, SP@ML, MP@HL, up to 1080P@60fps
MPEG-4, ASP profile @ level 5, up to 1080P@60fps
AVS, Jizhun profile @ level 6.0; up to 1080P@60fps
AVS-P16 (AVS+), up to 1080P@60fps
H.263, up to 576P@60fps
VC-1, SP@ML, MP@HL, AP@L0-3, up to 1080P@60fps

Video Encoder:
Support video encoder for H.264, HP@level4.2
H.264 maximum frame rate is up to 1920x1080@60fps
Capable of encoding HEVC Main Profile @ L4.1 High-tier
H.265 resolution and frame rate are up to 1920x1080 @60fps
JPEG encoder included

JPEG decoder:
Input JPEG file : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 sampling formats
Output raw image : YCbCr 4:0:0, 4:2:0, 4:2:2, 4:4:0, 4:1:1 and 4:4:4 semi-planar
Decoder size is from 48x48 to 8176x8176(66.8Mpixels)
Support JPEG ROI(region of image) decode
Maximum data rate is up to 76million pixels per second

Video Out:
Display Interface
Support HD 2.0b output up to 4K 10bit @60Hz
TV interface: TV encoder 10bit out for DAC
HD interface:
24 bit (RGB888 YCbCr444), 30 bit(RGB101010,YCbCr 420, YCbCr 444)
Max output resolution 4K for HD, 480i/576i for CVBS

HD
Compliant HD 2.0b
Support YUV420 4k x 2k @ 60fps
Support for 4k x 2k and 3D video formats
Support for up to 10.2bps bandwidth
Compliance HD compliance Test specification 1.4 and 2.x
Support HDR10, HLG HDR, Vivid HDR"

Audio: Supports MP3, AAC, WMA, RM, FLAC
Image: HD JPEG、BMP、GIF、PNG、TIF
Language: Multi-Language

Appliactions:
Online: Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc.
Apps: Apps download freely form android market、amazon app store etc.
Medium: Local Media playback,Support HDD, U Disck
Talk online: Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc

Others:
Support Email,office suit etc.
Support DLNA function
Support 2.4G wireless mouse/keyboard

Package Included:
1 x H96 Max M2 Box
1 x HDMI cable
1 x IR Remote
1 x Power adapter
1 x User Manual
